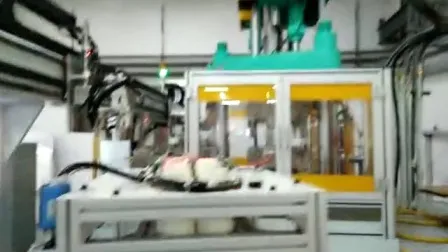

Plastic PE PVC Fittings Rotary Table Injection Molding Machines
Dongguan Jieyang Machinery Co., Ltd is established in 2005, which is located in Xincheng Industrial Zone of Hengli Town.
Description
Basic Info.
| Model NO. | JY-1000ST |
| Plastic Type | Thermoplastic |
| Plasticizing Way | Screw Type |
| Clamping Way | Hydraulic |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Brand Name | Jieyang |
| Automatic | Yes |
| After-Sales Service Provided | Overseas Service Is Available |
| Place of Origin | Dongguan |
| OEM | Yes |
| Delivery Days | 20-25 Days |
| Color | Can Be Customized |
| Customers | All Over The World |
| After-Service | Professioanl Enginers Who Can Speak English |
| Transport Package | Standard Packaging |
| Specification | CE, SGS, ISO9001 |
| Trademark | Jieyang |
| Origin | Dongguan, China |
| HS Code | 8477101090 |
| Production Capacity | 200 Set/Month |
Product Description
Dongguan Jieyang Machinery Co., Ltd is established in 2005, which is located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment and professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers. We warmly welcome you to visit our factory, we are waiting for you at JieYang!Our Goal: "Customer Satisfaction, Continual Improvement and Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.1. Function of Plastic PE PVC Fittings Rotary Table Injection Molding Machines: 1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production. 2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life. 3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks. 4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%. 5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.2. Parameter of Plastic PE PVC Fittings Rotary Table Injection Molding Machines: 3. Application: Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc. 4. Packing & Shipping: 1. Before shipping,we will check and test the machine carfully. 2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days. 3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us 5. Video of Vertical Injection Molding Machine 1. https://youtu.be/dgv7HaKg1Ro (15, 30 ton) 2. https://youtu.be/G348PTJSlK4 (standard,35, 45, 55, 85, 120 ton) 3. https://youtu.be/nLU_Atu1vTA (PC, 35, 45, 55, 85, 120 ton) 4. https://youtu.be/fYOD2omwP7Q (zipper making machine) 5. https://youtu.be/bu_9s4mYFvA (zipper making machine) 6. https://youtu.be/t-6_cSh_dCo (zipper making machine) 7. https://youtu.be/v-gU0rQIWnc (Workshop in the night) 8. https://youtu.be/eiecpUPhGP4 (USB Cable Production) 9. https://youtu.be/cZTeIqcBjvo ( USB Production) 10. https://youtu.be/vPLE-tvpkoo Plastic Staple Injection Molding Machine 11. https://youtu.be/5U9eAOhcHRI Plastic Fitting Injection Molding Machine 12. https://youtu.be/FYqTr1P9S0Y Phone Case Vertical Injection Moulding Machine 13. https://youtu.be/GvvR_LNdRmk Single Sliding Vertical Injection Molding Machine 14. https://youtu.be/jRS46TR-SvY Injection Molding Machine Operation in VietnamWelcome you to view our machines here, we have professional engineers team to design and make the injection machines according to your requirements, only please offer us the following information:1) what machines do you want to make with the injection machine ? what is the size of the mold/mould or show us the pictures of the product . 2) How many products are made in one mold / mould ? how many gram per product ?3) What's the material will be used for the products: Plastic, Rubber, PP,ABS, PE, PVC, Silicon, etc ?
6. RFQ:Q1: Are you a trading company or a manufactory? A1: We own a factory ourselves, and we can assure the quality we manufactured.Q2: What's your guarantee or the warranty of the quality if we buy your machines? A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge. Q3: Why choose Jieyang Machinery Co.,Ltd.? A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
| JY-1000SWT /2000SWT Technique specification | |||||||||
| Model | Units | JY-1000SWT | JY-2000SWT | ||||||
| Injection System | Screw Diameter | mm | 42 | 45 | 50 | 55 | 60 | 70 | |
| Injection Pressure | Kg/cm2 | 1015 | 885 | 717 | 2036 | 1711 | 1257 | ||
| Theoretical Shot volume | cm3 | 263 | 302 | 373 | 475 | 565 | 770 | ||
| Max. Shot Weight(P.S) | 9 | 239 | 275 | 339 | 432 | 514 | 700 | ||
| Injection Rate | cm3/sec | 149 | 171 | 211 | 107 | 128 | 174 | ||
| Screw speed Max | rpm | 0-200 | 0-200 | ||||||
| Temperature Control | ZONE | 4 | 4 | ||||||
| Clamping System | Clamping Force | T | 100 | 200 | |||||
| Platen Size | mm | 920*730 | 1080*900 | ||||||
| Distance Between Tie Bare | mm | 650*480 | 810*610 | ||||||
| Min Mold Height | mm | 250/350 | 250/350 | ||||||
| Opening Stroke | mm | 300 | 360 | ||||||
| Max. Open Daylight | mm | 550/660 | 610/710 | ||||||
| Ejector Force | T | 5.6 | 5.6 | ||||||
| Ejector stroke | mm | 125 | 150 | ||||||
| Power& Heading System | Max. Hydraulic Pressure | Kg/cm2 | 140 | 140 | |||||
| Pump Output | L/min | 65 | 94 | ||||||
| Pump Motor Power | Kw/HP | 15/20 | 22.5/30 | ||||||
| Barrel Heating Power | Kw | 4.35 | 8.5 | ||||||
| Total Wattage | Kw | 20 | 32 | ||||||
| Others | Machine Dimensions (L*W*H) | m | 2.7*1.3*3 | 4*1.4*3.2 | |||||
| Shipping Size (L*W*H) | m | 3*1.5*3.2 | 4.5*1.6*3.4 | ||||||
| Machine Weight | T | 6 | 8 | ||||||
| Shipping Weight | T | 6.6 | 9 | ||||||
