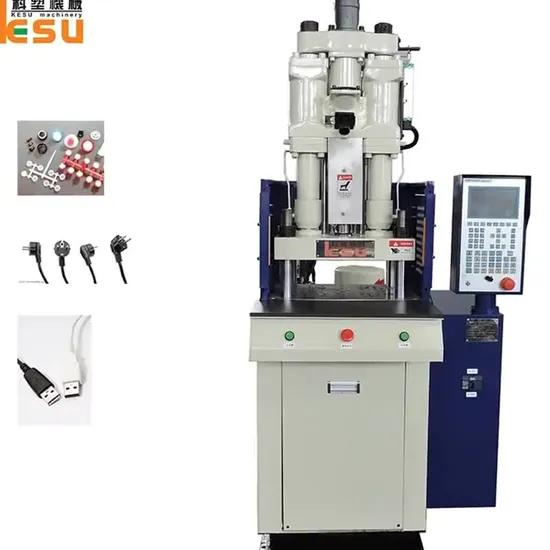

Triple Positioning System Rotary Table Vertical Injection Molding Machine

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• FAQ

Basic Info.

Product Description

ROTARY TABLE INJECTION MOLDING MACHINE* One upper mold, two or more lower molds on the same disc level. * 180° or 360° rotation, high operational safety, work efficiency increased by more than 50%. * Clamping force 35-650 tons, injection volume 1-6000g, turntable diameter 0.68-2.5m. * The turntable torque, speed, deceleration distance, and station number division settings are simple, and the consistency reliability is 100%. Aike's self-developed triple positioning system ensures the repeatability and parallelism of the turntable to meet the high requirements of automation matching. * Diversified oil system design (semi-closed, fully closed, servo or high-speed injection) can meet customer needs, expandable programming, and connect with automatic embedding and extraction equipment to achieve fully automatic operation. * Equipment above 45 tons can choose a low-profile configuration, with the clamping cylinder above the equipment. The work surface can be lowered to 0.8 meters, making the operation more user-friendly. * KESU forged machine column technology replaces traditional welded machine columns. Traditional machine columns are easy to break, while forged machine columns have the characteristics of high strength and low deformation, and a 20-year equipment guarantee. * Large turntable machines above 120 tons are equipped with triple safety bar protection to prevent sudden power outages from protecting operators and machines.

ENERGY-SAVING AND EFFICIENTThis high-quality injection molding machine is designed to save energy, reduce the operating costs of manufacturing plants, and minimize the impact on the environment.HIGH PRODUCTIVITYThe machine is designed to provide high productivity and can be mass-produced according to user needs.SUITABLE FOR ALL WALKS OF LIFEThe machine is suitable for a wide range of industries, including building material stores, manufacturing plants, machinery repair, construction engineering, energy and mining, and advertising companies.DURABLE AND RELIABLEThe machine adopts a rugged design and high-quality core components, including bearings, motors, pumps, gears, PLCs and pressure vessels, which are durable.PERFORMANCE ADVANTAGESThe injection unit and clamping unit are located on the same vertical center line, and the mold opens and closes in the up and down direction. Its footprint is about half of that of a horizontal machine, which makes it easy to achieve insert molding. Since the mold faces upward, it is very convenient to place and position the insert.
